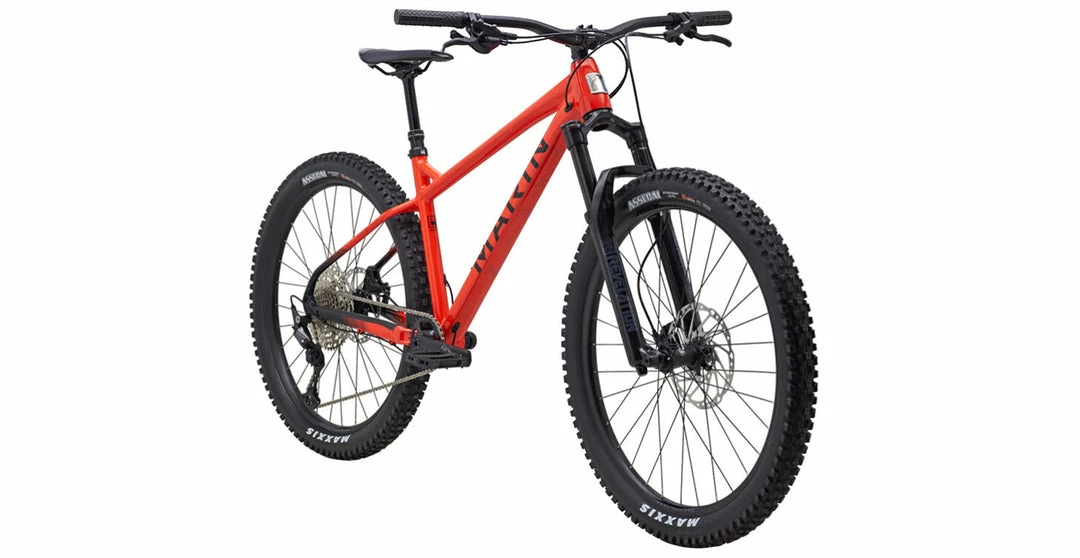

2021 MARIN SAN QUENTIN 3 – 27.5″ ENDURO MOUNTAIN BIKE

Bikes are sold out Worldwide. Please contact us directly for availability.

DOWNHILL TRAILS

LIGHT DIRT JUMP

ENDURO

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.

Key upgrades over the San Quentin 2:

• RockShox Revelation RC fork
• Shimano Deore 6100 wide-range 12-speed drivetrain
• Shimano MT420 4-piston brakes
• Maxxis Assegai 3C MAXX TERRA EXO tubeless compatible tires

SPECIFICATIONS

• FRAME

  Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, External Brake, 12x148mm Thru-Axle, 73mm Threaded BB

• FRONT SUSPENSION

  RockShox Revelation RC, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru-Axle, 37mm Offset

• RIMS

  Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

• HUB, REAR

  Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

• HUB, FRONT

  Shimano HF-MT410B, 110x15mm, Centerlock

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Maxxis Assegai, 27.5×2.5″, 3C MAXX TERRA, EXO, Tubeless Compatible

• DERAILLEUR, REAR

  Shimano Deore, 12-Speed, SGS

• DERAILLEUR, FRONT

  –

• SHIFT LEVER

  Shimano Deore, 12-Speed, SL-7100R

• CRANKSET

  FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

• BOTTOM BRACKET

  Mega EXO 73mm BSA

• CHAIN

  KMC X-12 Silver and Black

• CASSETTE

  Shimano, Deore 12-Speed, 10-51T

• BRAKE, FRONT

  Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

• BRAKE, REAR

  Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor

• BRAKE LEVERS

  Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Single Clamp Locking

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

• SEATPOST

  X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, All Other Sizes: 150mm Travel, 30.9mm

• SADDLE

  Marin Speed Concept

• PEDALS

  Nylon Platform
